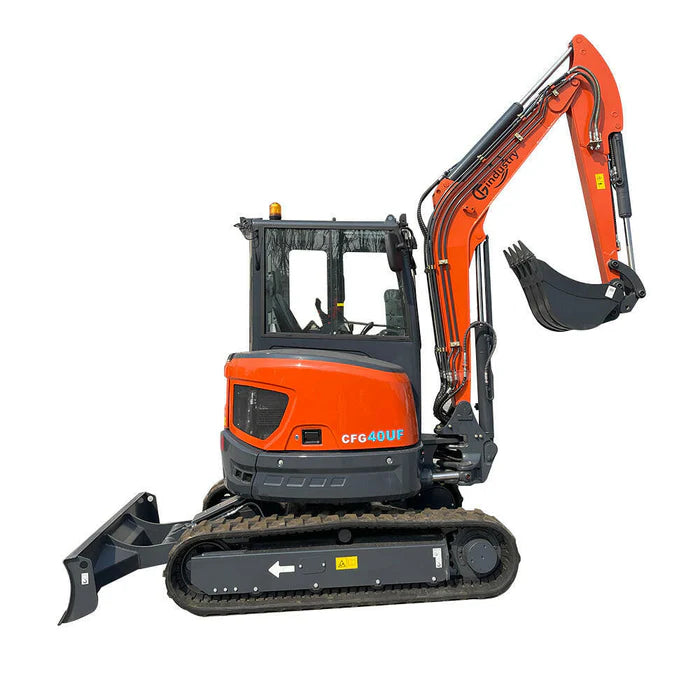

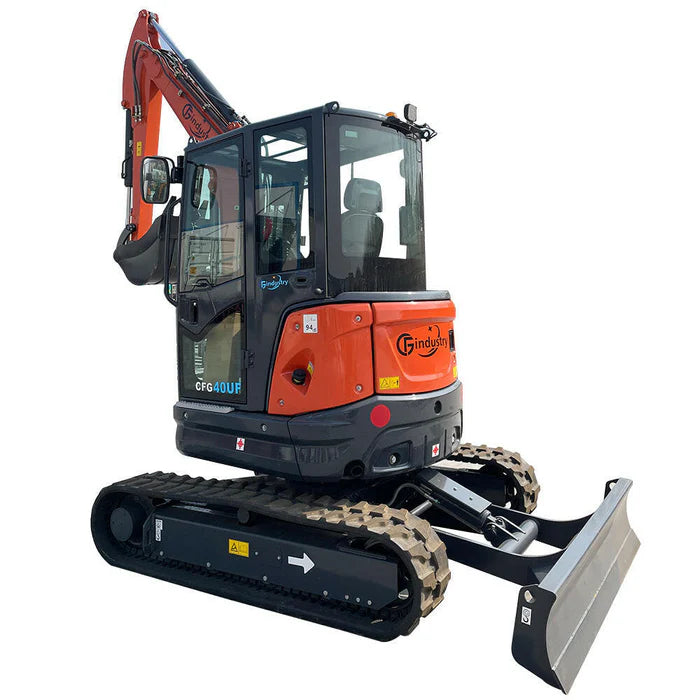

25 HP 4 Ton Mini Excavator with Kubota Engine | CFG 40UF | Compact Digging Machine for Construction, Landscaping & Farm Use

Product Description

• Type Of Cab: Cabin/Canopy
• Bucket Capacity. std. : 0.11m³
• Bucket Width: 20.47"
• Machine Weight: 8487.79/ 8267.33 lbs
• Overall Length: 192.51"
• Overall Height: 100.59"
• Overall Width: 66.92"
• Ground Clearance: 10.62"
• Engine Brand: KUBOTA
• Engine Model: D1703-E4B-SWD-1
• Engine Displacement: 1.647L
• Engine Output: 18.2/2200 kW/pm
• Arm Length: 53.15" | 61"
• Max Cutting Height: 193.9" | 198.62"
• Max Loading Height: 133.85" | 138.58"
• Max Digging Depth: 122.83" | 130.70"
• Max Vertical Wall Digging Depth: 104.92" | 112.6"
• Max Digging Reach: 212.20" | 219.49"
• Boom Swing Angle (Left/ Right): 72°/ 44°
• Front Swing Radius: 89.17" | 91.41"
• Tail Swing Radius: 33.46"
• Max Digging Force (Arm): 19.8kN | 18kN
• Max Digging Force (Bucket): 31.8kN
• Track Type: Rubber Track/ Steel Track
• Track Width: 11.81"
• Track Length: 85.15"
• Length to Center of Rollers: 65.75"
• Lenhth to Center of Track: 55.12"
• Travelling Speed (High/Low): 4.0/ 2.3 km/h
• Gradeability: 30°
• Swing Speed: 9.5 rpm
• Ground Pressure: 33.99 kPa
• Dozer Width: 66.93"
• Dozer Height: 14.41"
• Dozer Lifting Capacity (Height/Depth): 13.27" | 14.80"
• Hydraulic Pumps Type: 1 variable plungerpump
• Hydraulic Pumps Displacement: 1×88 L/min
• Hydraulic Pressure: 24.5 MPa
• Fuel Tank Capacity: 40L
• Hydraulic Oil Tank Capacity: 41L
